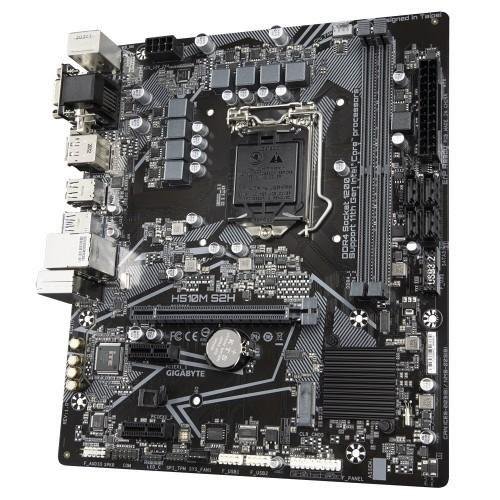

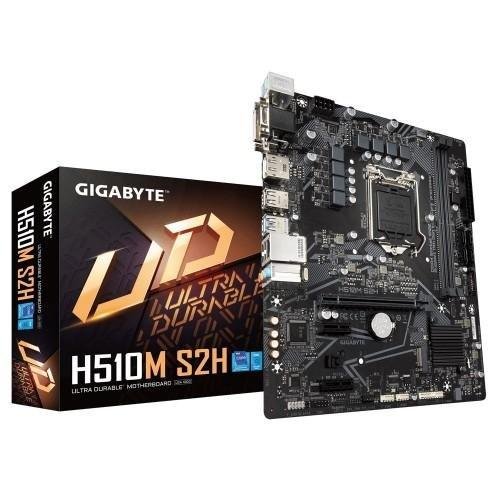

GIGABYTE H510M S2H Intel 10th and11th Gen Micro ATX Motherboard

GIGABYTE H510M S2H Intel 10th and 11th Gen Micro ATX Motherboard Specification

Basic Information

• Supported CPU:
  • 11th Generation Intel Core i9/i7/i5 processors
  • 10th Generation Intel Core i9/i7/i5/i3 processors, Intel Pentium processors, Intel Celeron processors
  • Note: Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family.
• Chipset: Intel H510 Express Chipset
• BIOS:
  • 1 x 256 Mbit flash
  • Licensed AMI UEFI BIOS
  • Supports PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Form Factor: Micro ATX Form Factor (24.4cm x 21.0cm)

Audio

• Codec: Realtek Audio CODEC
• Channels: High Definition Audio, supporting 2/4/5.1/7.1-channel

Expansion Slots

• PCI:
  • 1 x PCI Express x16 slot (running at x16)
    • Conforms to PCI Express 4.0 standard (11th Gen processors only)
  • 2 x PCI Express x1 slots (conforming to PCI Express 3.0 standard)
• M.2 Socket:
  • 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)

Memory

• Type: Dual channel memory architecture
• Slots: 2 x DDR4 DIMM
• Supported Memory:
  • 11th Gen Intel Core i9/i7/i5 processors: DDR4 3200/3000/2933/2666/2400/2133 MHz
  • 10th Gen Intel Core i9/i7 processors: DDR4 2933/2666/2400/2133 MHz
  • 10th Gen Intel Core i5/i3/Pentium/Celeron processors: DDR4 2666/2400/2133 MHz
• Maximum Memory: 64 GB (32 GB single DIMM capacity)
• Features:
  • ECC Un-buffered DIMM support (operates in non-ECC mode)
  • Non-ECC Un-buffered DIMM support
  • Extreme Memory Profile (XMP) support

Graphics

• Integrated Graphics Processor: Intel HD Graphics support
• Ports:
  • 1 x D-Sub port (max resolution 1920x1200@60 Hz)
  • 1 x DVI-D port (max resolution 1920x1200@60 Hz)
  • 1 x HDMI port (max resolution 4096x2160@30 Hz)
  • 1 x DisplayPort (max resolution 4096x2304@60 Hz)
• Note:
  • The DVI-D port does not support D-Sub connection by adapter.
  • When D-Sub and DisplayPort are connected simultaneously, images will output only from the DisplayPort.
  • Supports up to 2 displays simultaneously.

Connector & Ports

• HDMI: 1 x HDMI port
• DisplayPort: 1 x DisplayPort
• D-Sub: 1 x D-Sub port
• DVI-D: 1 x DVI-D port
• USB:
  • 4 x USB 3.2 Gen 1 ports (2 on the back panel, 2 via internal USB header)
  • 8 x USB 2.0/1.1 ports (4 on the back panel, 4 via internal USB header)
• LAN: Realtek GbE LAN chip (1 Gbit/100 Mbit)
• Storage:
  • 1 x M.2 connector (SATA and PCIe 3.0 x4/x2 SSD support)
  • 4 x SATA 6Gb/s connectors
  • Note: M.2 connector supports up to PCIe 3.0 x2 SSD when PCIEX1_1 slot is populated.

Internal I/O Ports

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 4 x SATA 6Gb/s connectors
• 1 x CPU fan header
• 2 x system fan headers
• 1 x RGB LED strip header
• 1 x front panel header
• 1 x front panel audio header
• 1 x speaker header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x serial port header
• 1 x Clear CMOS jumper
• TPM: 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Special Features

• APP Center (varies by motherboard model)
  • @BIOS, Ambient LED, EasyTune, Fast Boot, Game Boost, ON/OFF Charge, Smart Backup, System Information Viewer, Q-Flash, Xpress Install
• Bundled Software: Norton Internet Security (OEM version), Realtek 8118 Gaming LAN Bandwidth Control Utility

Warranty Information

• Manufacturing Warranty: 3 years
