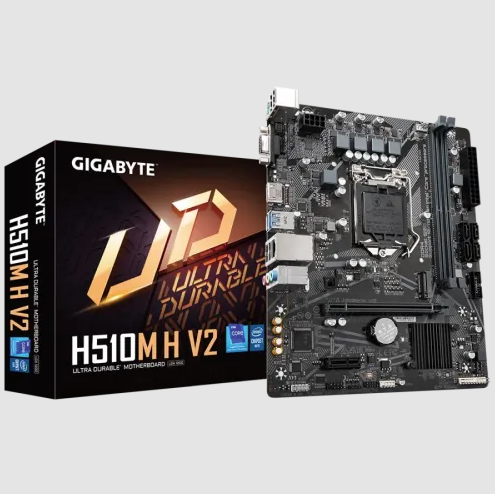

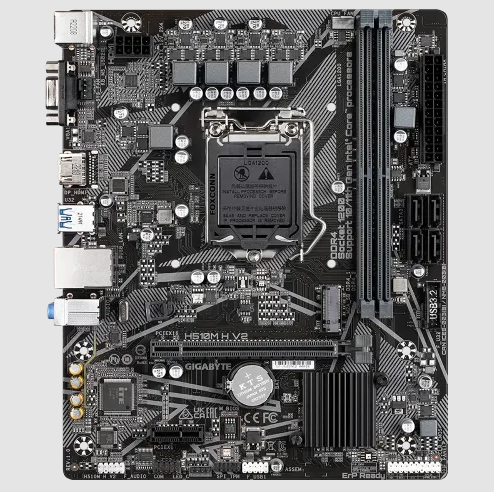

GIGABYTE H510M H V2 10th Gen Micro ATX Motherboard
Basic Information
- Supported CPU: LGA1200 package; 10th Gen Intel Core i9/i7/i5/i3, Pentium, and Celeron processors
- Chipset: Intel H470 Express Chipset
- BIOS: AMI UEFI BIOS, 128 Mbit flash
- Form Factor: Micro ATX, 22.6cm x 18.5cm
Memory
- Type: DDR4
- Slots: 2 x DIMM
- Supported Memory:
- 10th Gen Intel Core i9/i7: DDR4 2933/2666/2400/2133 MHz
- 10th Gen Intel Core i5/i3/Pentium/Celeron: DDR4 2666/2400/2133 MHz
- Maximum Memory: 64GB (32GB per DIMM)
- Features: Dual channel, ECC (non-ECC mode), XMP support
Expansion Slots
- PCI Express:
- 1 x PCI Express x16 (PCIe 3.0, running at x16)
- 1 x PCI Express x1 (PCIe 3.0)
Graphics
- Integrated Graphics: Intel HD Graphics
- HDMI: 1 port, max resolution 4096x2160@30Hz
- D-Sub: 1 port, max resolution 1920x1200@60Hz
Connector & Ports
- USB:
- Chipset: 4 x USB 3.2 Gen 1 ports (2 rear, 2 internal)
- 6 x USB 2.0/1.1 ports (4 rear, 2 internal)
- LAN: Realtek GbE LAN chip (1 Gbps)
- Storage:
- 1 x M.2 connector (PCIe 3.0 x4/x2, SATA)
- 4 x SATA 6Gb/s connectors
- Audio: Realtek HD Audio, 7.1-channel
Internal I/O Ports
- Power Connectors: 24-pin ATX, 8-pin ATX 12V
- Fan Headers: 1 x CPU, 1 x System
- Others:
- 1 x RGB LED strip header
- 1 x USB 3.2 Gen 1 header
- 1 x USB 2.0/1.1 header
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x serial port header
- 1 x Clear CMOS jumper
Special Features
- Software: APP Center, @BIOS, Ambient LED, EasyTune, Smart Backup, System Information Viewer, Q-Flash, Xpress Install
- Bundled Software: Norton Internet Security (OEM), LAN bandwidth management software
Warranty
- Manufacturing Warranty: 3 Years
This motherboard is well-suited for users looking for a reliable and feature-rich platform for 10th Gen Intel processors, offering essential connectivity and expandability options for various builds.
