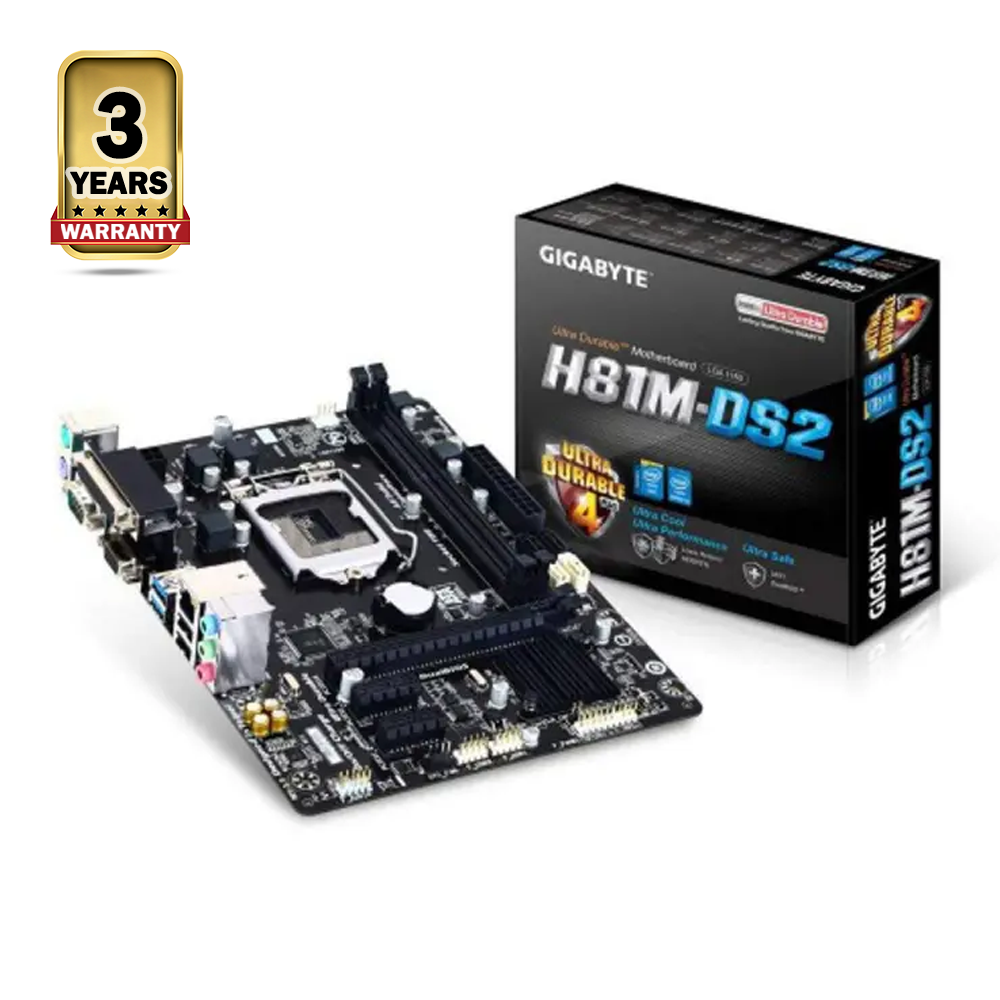

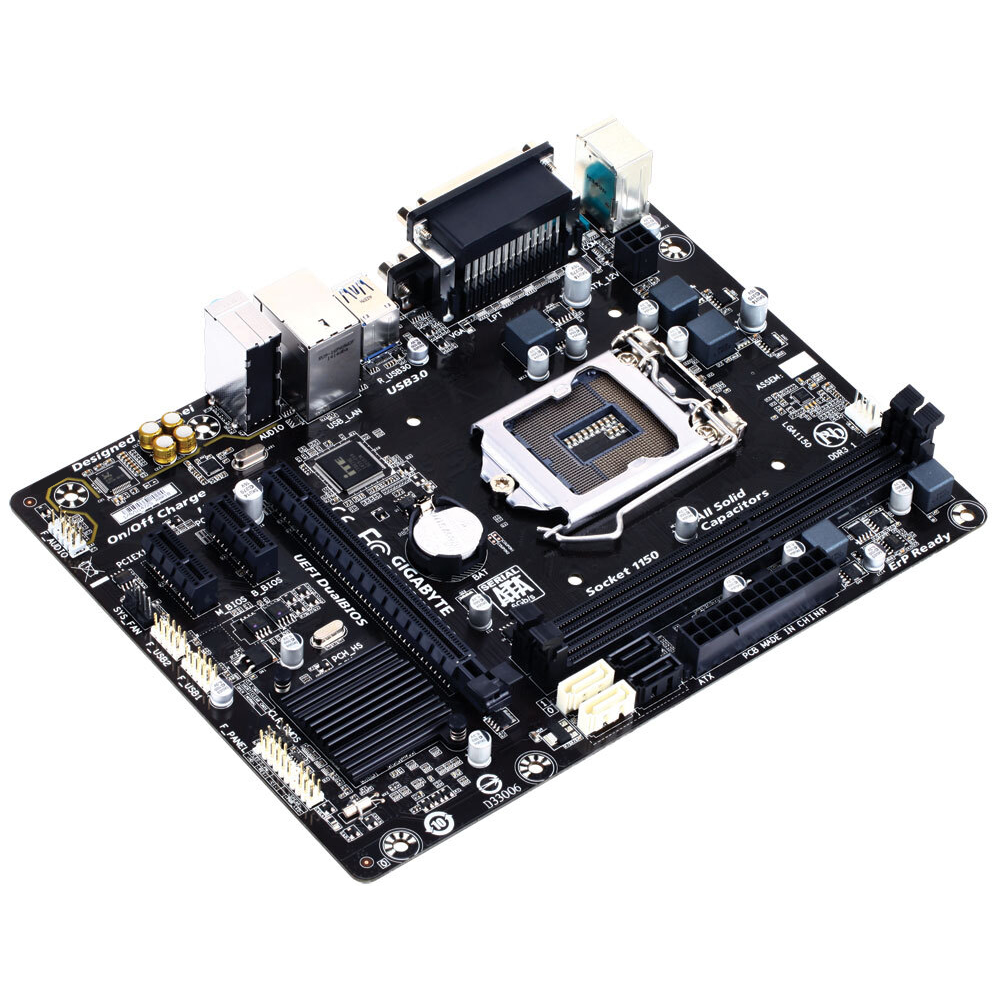

Gigabyte GA-H81M-DS2 UEFI Dual BIOS HD Graphics Motherboard

Gigabyte GA-H81M-DS2 UEFI Dual BIOS HD Graphics Motherboard – Product Specifications

Basic Information:

• Supported CPU:
  • Compatible with Intel® Core™ i7, Core™ i5, Core™ i3, Pentium®, and Celeron® processors in the LGA1150 package.
  • L3 cache varies based on the CPU.
• Chipset: Intel® H81 Express Chipset
• BIOS:
  • 2 x 64 Mbit flash, AMI EFI BIOS
  • Supports DualBIOS™ technology
  • Supports PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Form Factor: Micro ATX, 22.6cm x 17cm

Expansion Slots:

• 1 x PCI Express x16 slot, running at x16
• 2 x PCI Express x1 slots
  • PCI Express slots conform to the PCI Express 2.0 standard

Memory:

• Type: Dual-channel DDR3 memory architecture
• Slots: 2 x DIMM (1.5V)
• Supported Memory:
  • Support for DDR3 1600/1333 MHz memory modules
  • Support for non-ECC memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
• Maximum Memory: Up to 16 GB

Graphics:

• 1 x D-Sub (VGA) port, supporting a maximum resolution of 1920x1200
• Max Shared Memory: 1 GB

Connector & Ports:

• D-Sub (VGA): 1 x D-Sub
• USB Ports:
  • Chipset:
    • Up to 2 x USB 3.0/2.0 ports (on the back panel)
    • Up to 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 available through internal USB headers)
• LAN: Realtek® GbE LAN chip (10/100/1000 Mbit)

Storage:

• 2 x SATA 6Gb/s connectors (SATA3 0/1) – supports up to 2 SATA 6Gb/s devices
• 2 x SATA 3Gb/s connectors (SATA2 2/3) – supports up to 2 SATA 3Gb/s devices

Audio:

• Realtek® ALC887 codec
• High Definition Audio: Supports 2/4/5.1/7.1-channel audio
  • To configure 7.1-channel audio, an HD front panel audio module is required, along with enabling multi-channel audio via the audio driver.

Internal I/O Ports:

• 1 x 24-pin ATX main power connector
• 1 x 4-pin ATX 12V power connector
• 2 x SATA 6Gb/s connectors
• 2 x SATA 3Gb/s connectors
• 1 x CPU fan header
• 1 x system fan header
• 1 x front panel header
• 1 x front panel audio header
• 2 x USB 2.0/1.1 headers
• 1 x Clear CMOS jumper

TPM (Trusted Platform Module):

• N/A

Warranty:

• Manufacturing Warranty: 03 Years
