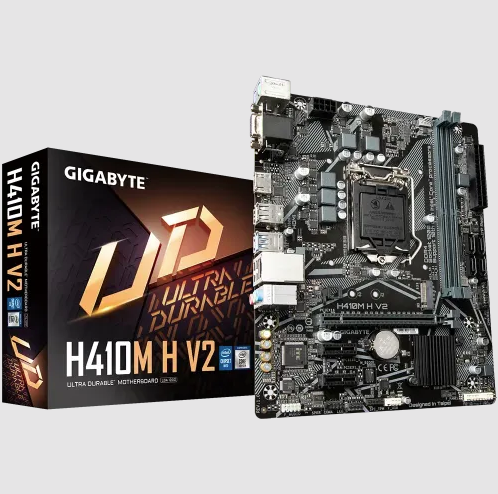

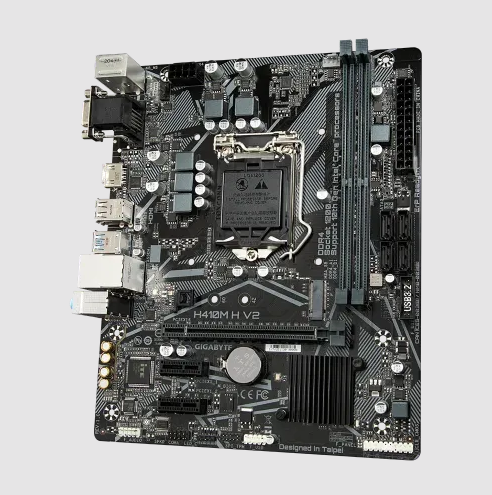

GIGABYTE H410M H V2 10th Gen Micro ATX Motherboard

GIGABYTE H410M H V2 10th Gen Micro ATX Motherboard Specification

Basic Information

Supported CPU:

• Supports 10th Generation Intel® Core™ i9/i7/i5/i3 processors, Intel® Pentium® processors, and Intel® Celeron® processors in the LGA1200 package.

Chipset:

• Intel® H470 Express Chipset

BIOS:

• 1 x 256 Mbit flash
• Licensed AMI UEFI BIOS
• Supports PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor:

• Micro ATX Form Factor; 22.6cm x 18.5cm

Audio

Audio Codec:

• Realtek® Audio CODEC
• Supports High Definition Audio with 2/4/5.1/7.1-channel sound

Expansion Slots

PCI:

• 1 x PCI Express x16 slot, running at x16
• 2 x PCI Express x1 slots (conform to PCI Express 3.0 standard)
• Supports up to ASPM L1.2 power management protocols

Memory

Type:

• DDR4

Slots:

• 2 x DIMM

Supported Memory:

• Intel® Core™ i9/i7 processors: Supports DDR4 2933/2666/2400/2133 MHz memory modules
• Intel® Core™ i5/i3/Pentium®/Celeron® processors: Supports DDR4 2666/2400/2133 MHz memory modules
• Dual-channel memory architecture
• Supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operates in non-ECC mode)
• Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Supports Extreme Memory Profile (XMP) memory modules

Maximum Memory:

• 64GB (32GB per single DIMM capacity)

Graphics

Integrated Graphics:

• Integrated Graphics Processor-Intel® HD Graphics support
• 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz (Supports HDMI 1.4 and HDCP 2.3)

Max Shared Memory:

• 512MB

Connector & Ports

HDMI:

• 1 x HDMI port

D-Sub:

• 1 x D-Sub port

USB:

• Chipset:
  • 4 x USB 3.2 Gen 1 ports (2 on the back panel, 2 available through internal USB header)
  • 6 x USB 2.0/1.1 ports (4 on the back panel, 2 available through internal USB header)

LAN Port:

• Intel® GbE LAN chip (1 Gbit/100 Mbit)

Supported Storage

• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
• 4 x SATA 6Gb/s connectors
• Intel® Optane™ Memory Ready
• M.2 connectors support up to ASPM L1.2 PCIe power management protocols

RAID:

• Support for RAID 0, RAID 1, RAID 5, and RAID 10

Internal I/O Ports

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x system fan header
• 1 x RGB LED strip header
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x serial port header
• 1 x Clear CMOS jumper

TPM (Trusted Platform Module):

• 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Special Features

• Support for APP Center: (Available applications vary by motherboard model)
  • @BIOS
  • Ambient LED
  • EasyTune
  • Fast Boot
  • Game Boost
  • ON/OFF Charge
  • Smart Backup
  • System Information Viewer
  • Q-Flash
  • Xpress Install

Bundled Software:

• Norton® Internet Security (OEM version)
• cFosSpeed

Warranty Information

Manufacturing Warranty:

• 03 Years
