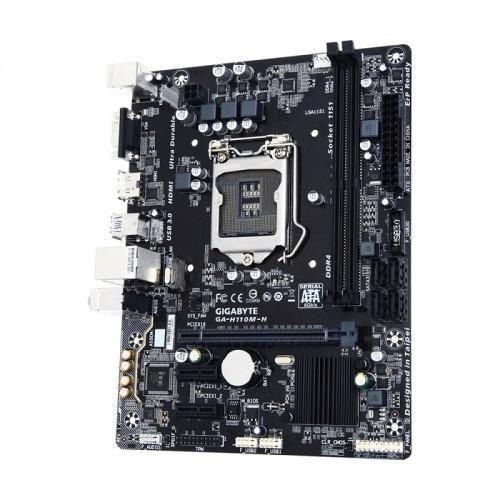

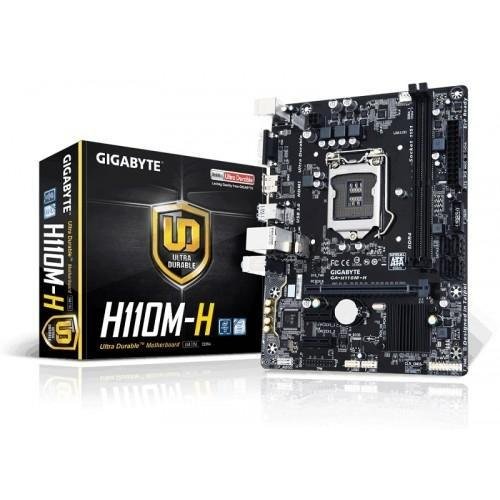

Gigabyte GA-H110M-H Micro ATX Motherboard

Gigabyte GA-H110M-H Micro ATX Motherboard Specification

Basic Information

Supported CPU:

• Supports 7th/6th Generation Intel® Core™ i7/i5/i3 processors, Intel® Pentium® processors, and Intel® Celeron® processors in the LGA1151 package.
• Note: BIOS update required for 7th Generation Intel® Core™ processors.
• L3 cache varies depending on the CPU.

Chipset:

• Intel® H110 Express Chipset

BIOS:

• 1 x 64 Mbit flash
• Licensed AMI UEFI BIOS
• Supports PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor:

• Micro ATX Form Factor; 22.6cm x 17.4cm

Expansion Slots

PCI:

• 1 x PCI Express x16 slot, running at x16 (conforms to PCI Express 3.0 standard)
• 2 x PCI Express x1 slots (conform to PCI Express 2.0 standard)

Memory

Type:

• Dual-channel DDR4 memory architecture

Slots:

• 2 x DIMM

Supported Memory:

• Supports DDR4 2400/2133 MHz memory modules
• Supports ECC UDIMM 1Rx8/2Rx8 memory modules (operates in non-ECC mode)
• Supports non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

Maximum Memory:

• 32 GB

Graphics

Integrated Graphics:

• 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz (HDMI 1.4 version supported)

Max Shared Memory:

• 1024 MB

Connector & Ports

HDMI:

• 1 x HDMI port

D-Sub:

• 1 x D-Sub port

USB:

• 4 x USB 3.0/2.0 ports (2 on the back panel, 2 through internal USB header)
• 6 x USB 2.0/1.1 ports (2 on the back panel, 4 through internal USB headers)

LAN Port:

• Realtek® GbE LAN chip (10/100/1000 Mbit)

Supported Storage

Chipset:

• 4 x SATA 6Gb/s connectors

Audio

Audio Codec:

• Realtek® ALC887 codec
• Supports High Definition Audio with 2/4/5.1/7.1-channel sound
• Note: To enable 7.1-channel audio, an HD front panel audio module is required, and the multi-channel audio feature must be enabled via the audio driver.
• Support for S/PDIF Out

Internal I/O Ports

• 1 x 24-pin ATX main power connector
• 1 x 4-pin ATX 12V power connector
• 4 x SATA 6Gb/s connectors
• 1 x CPU fan header
• 1 x system fan header
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x USB 3.0/2.0 header
• 2 x USB 2.0/1.1 headers
• 1 x Clear CMOS jumper

TPM (Trusted Platform Module):

• 1 x TPM header

Warranty Information

Manufacturing Warranty:

• 03 Years
