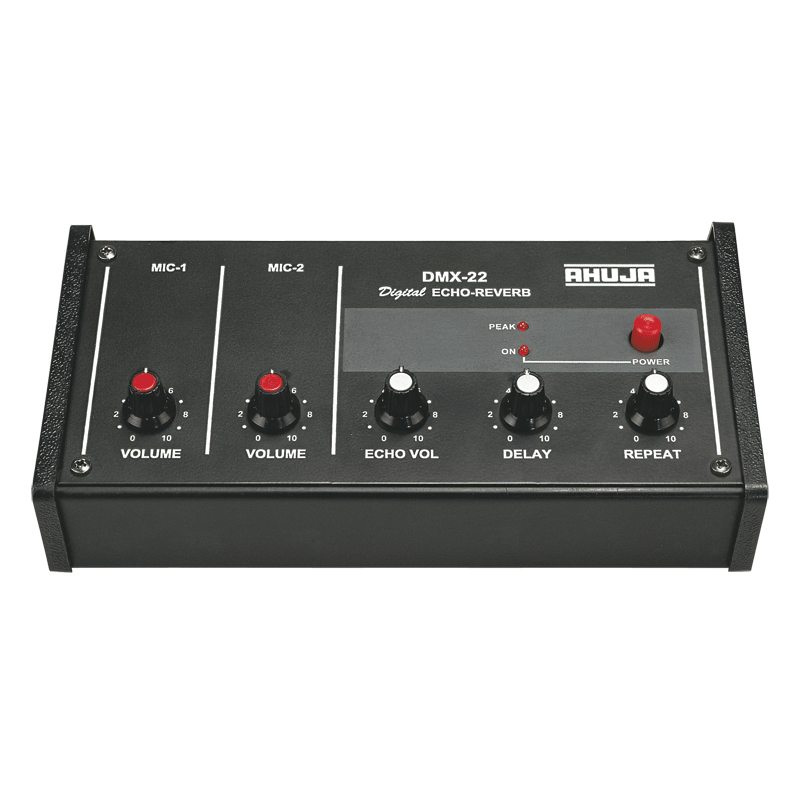

Ahuja DMX-22 Mixer AC 220 & DC 12V 2 Channel Mixer Preamplifier

AHUJA 2 Channel Mixer Preamplifier

Overview:

The AHUJA 2 Channel Mixer Preamplifier is designed for enhancing audio with built-in digital effects like echo, reverb, and chorus. It is ideal for adding depth and color to vocals and musical instruments in both live and studio settings.

Key Features:

• Channels: 2 x Mic (0.6mV input level)
• Effects:
  • Echo: Adjustable via Echo Volume, Repeat, and Delay controls
  • Reverb: Adds depth and ambiance
  • Chorus: Enriches sound texture
• Digital Signal Processing: Ensures high-quality effects with minimal distortion
• Peak LED Indicator: Helps in setting optimum input levels without distortion
• Frequency Response: 20-20,000 Hz (±3dB)
• Distortion: < 1%
• Signal to Noise Ratio: 40dB

Connections:

• Inputs: 2 x Microphone (0.6mV)
• Outputs: Preamp output (200mV)

Power Requirements:

• AC: 220-240V, 50/60Hz
• DC: 12V (using a 12V Car Battery)

Dimensions:

• Width: 220 mm
• Height: 60 mm
• Depth: 120 mm

Weight:

• Net Weight: 1.2 kg

Additional Information:

• Controls: Includes power ON/OFF switch and CALL function for added flexibility
• Usage: Suitable for live performances, studio recordings, and other audio applications requiring enhanced sound effects

The AHUJA 2 Channel Mixer Preamplifier offers versatile functionality with its range of effects and high-quality processing, making it a valuable tool for any audio setup.
